Kyphoplasty Instruments
The Joline kyphoplasty system comprises an extensive selection of individual instruments which are available separately or as kit component (see overview kits). All our instruments are developed and manufactured in-house. Our efforts are: Quality, handling and user friendliness first! For example - colour-coding red yellow green makes our introducer instruments quick and easy to identify during the procedure. Joline – close to the customer.
Our Customer Service will be pleased to be of further advice.

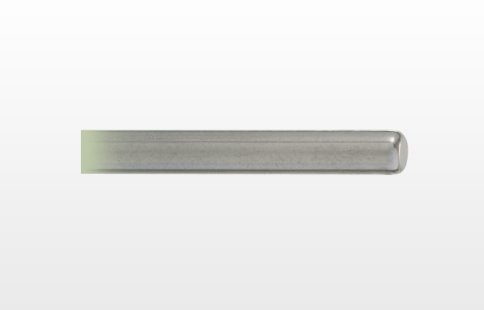

Guide Pin blunt
Item No. S9102
Guide wire
Outer diameter 1.6 mm / 16 ga

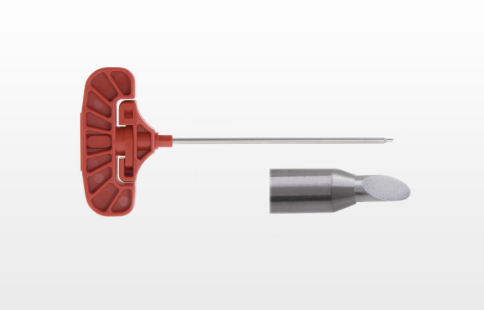

Vertebra Access Device Bevel Tip
Item No. S9104
Access Needle & Stylet
Needle:
Outer diameter 3 mm / 11 ga
Inner diameter 1.85 mm / 15 ga
Stylet:
Outer diameter 1.8 mm / 15 ga

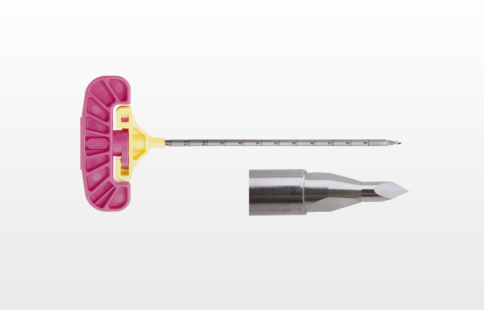

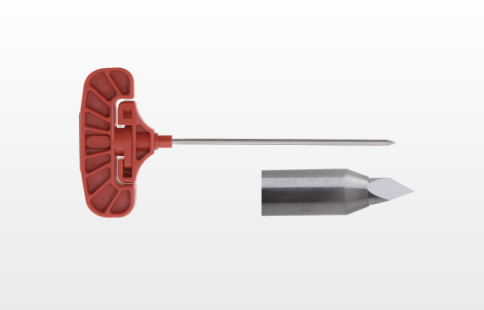

Vertebra Access Device Trocar Tip
tem No. S9101
Access Needle & Stylet
Needle:
Outer diameter 3 mm / 11 ga
Inner diameter 1.85 mm / 15 ga
Stylet:
Outer diameter 1.8 mm / 15 ga

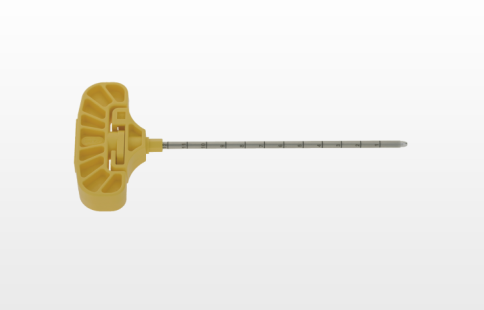

Vertebra Introducer Device
Item No. S9201
Introducer Cannula & Stylet
Cannula:
Outer diameter 4.1 mm / 8 ga
Inner diameter 3.6 mm / 10 ga
Stylet:
Outer diameter 3.5 mm / 10 ga
Inner diameter 1.8 mm / 15 ga

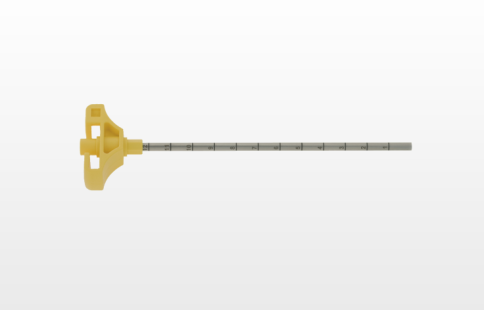

Vertebra Introducer Cannula
Item No. S9202
Cannula:
Outer diameter 4.1 mm / 8 ga
Inner diameter 3.6 mm / 10 ga

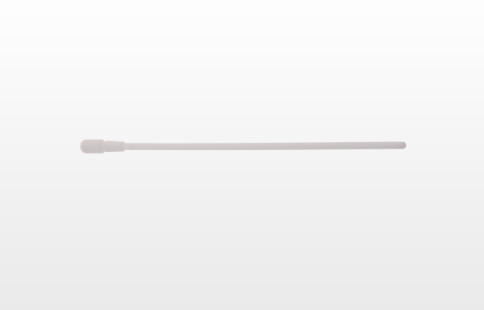

Introducer Cannula Plug
Item No. S9203

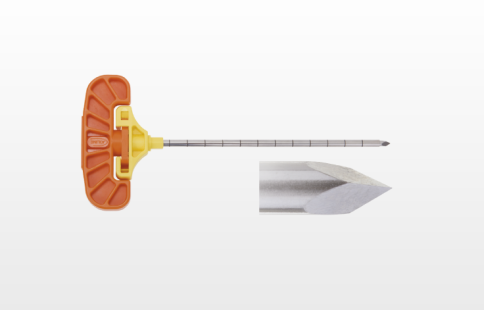

RapidIntro Trokar Tip
Item No. S9211
Introducer Cannula & Stylet
Cannula:
Outer diameter 4.1 mm / 8 ga
Inner diameter 3.6 mm / 10 ga
Stylet:
Outer diameter 3.5 mm / 10 ga

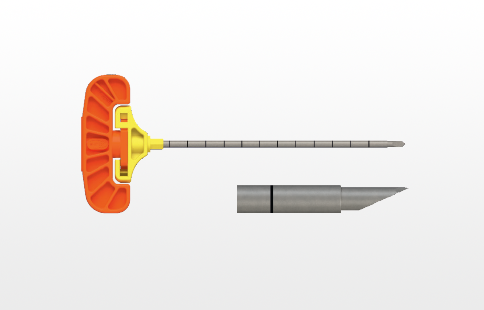

RapidIntro Bevel Tip
Item No. S9213
Introducer Cannula & Stylet
Cannula:
Outer diameter 4.1 mm / 8 ga
Inner diameter 3.6 mm / 10 ga
Stylet:
Outer diameter 3.5 mm / 10 ga

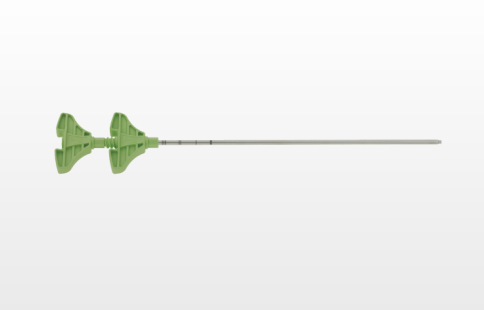

SpeedTrack Short Tip
Item No. S9312
Introducer Cannula & Stylet
Cannula:
Outer diameter 4.1 mm / 8 ga
Inner diameter 3.6 mm / 10 ga
Stylet:
Outer diameter 3.5 mm / 10 ga
Vertebra Biopsy Device
Item No. S9301
Needle & Plunger
Needle:
Outer diameter 3.4 mm/10 ga
Inner diameter 2.9 mm/12 ga
Plunger:
Outer diameter 2.8 mm/12 ga

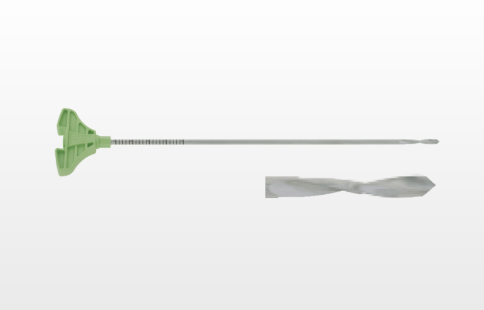

Bone Drill
Item No. S9302
Outer diameter 3.4 mm / 10 ga

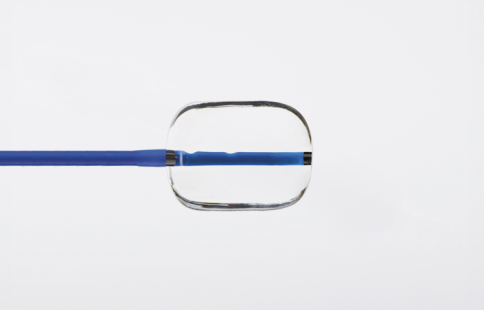

Kyphoplasty Balloon Catheter, 10 mm
Item No. S9401
16 mm, Balloon length = 10 mm,
Pressure 27 bar (390 psi) / Vol. 3ml
Kyphoplasty Balloon Catheter, 16 mm
Item No. S9402
16 mm, Balloon length = 16 mm,
Pressure 27 bar (390 psi) / Vol. 4ml
Kyphoplasty Balloon Catheter, 22 mm
Item No. S9403
16 mm, Balloon length = 22 mm,
Pressure 27 bar (390 psi) / Vol. 6ml

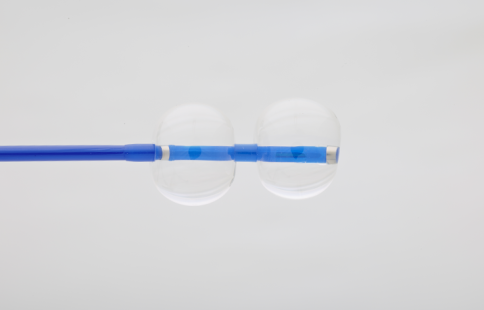

Kyphoplasty Double Balloon Catheter
Art.Nr. S9420
16 mm, Balloon Length = 2 x 8 mm
Pressure 27 bar (390 psi) / Vol. 2 x 3 ml
Allevo Curette
Item No. S9410
Outer diameter 3.5 mm / 10 ga

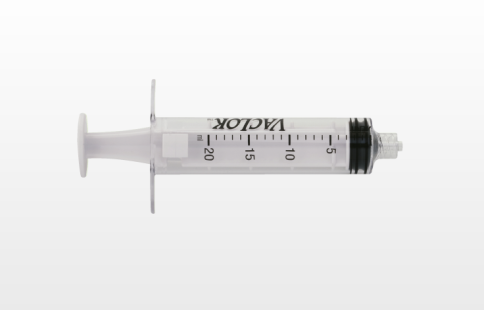

Vacuum Syringe 20 ml
Item No. S9501
1 unit = 5 pcs.
Item No. S9503
1 unit = 1 pc.

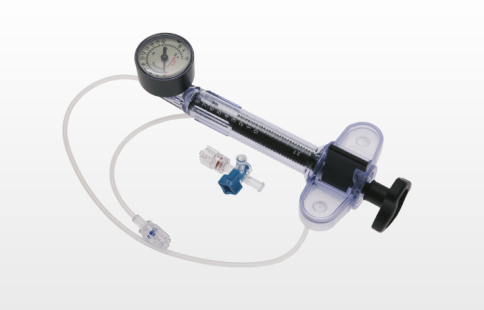

Inflation Device
Item No. S9502
30 atm; (440 psi)
Mixer 40 ml
Item No. S9610
1 unit = 1 pc.

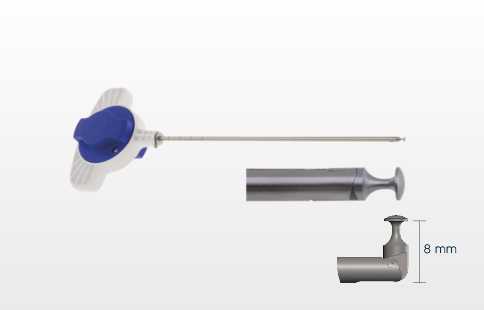

Vertebra Filler Device (front opening)
Item No. S9601
Noozle:
Outer diameter 3.4 mm / 10 ga
Inner diameter 2.9 mm / 12 ga
Plunger:
Outer diameter 2.8 mm / 12 ga
Vertebra Filler Device (side opening)
Item No. S9602
Noozle:
Outer diameter 3.4 mm / 10 ga
Inner diameter 2.9 mm / 12 ga
Plunger:
Outer diameter 2.8 mm / 12 ga

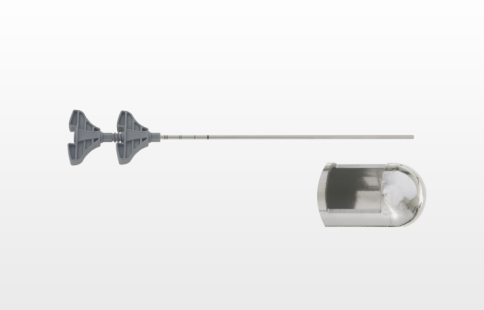

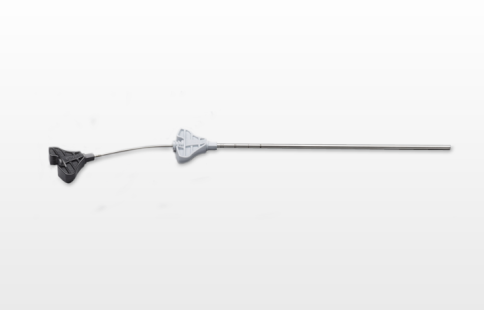

Vertebra Filler Device Flex Plunger (front opening)
Item No. S9604
Noozle:
Outer diameter 3.4 mm / 10 ga
Inner diameter 2.9 mm / 12 ga
Plunger:
Outer diameter 2.8 mm / 12 ga

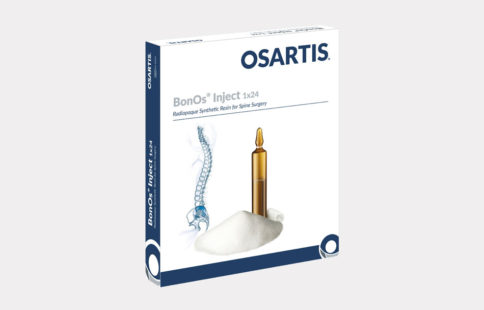

Bone Cement BoneOs Inject
Item No. S9702
1 pc.
